Mar. 26, 2025
PEX pipes are categorized into three primary grades based on their manufacturing processes and material properties: PEX-A, PEX-B, and PEX-C. Each type has unique characteristics that influence performance, installation methods, and suitability for specific applications.
1. PEX-A: The Most Flexible Option
Manufacturing Process: Made using the Engel method, which involves peroxide (PEX-A) cross-linking. This creates a uniform molecular structure with up to 85% cross-linking density.
Key Features:
Superior flexibility, allowing tight bends without kinking.
Exceptional resistance to freeze damage (can expand and contract without bursting).
Compatible with all connection types, including expansion fittings.
Best For: Cold climates, retrofit projects, and applications requiring complex bends.
2. PEX-B: The Cost-Effective Choice
Manufacturing Process: Produced via the Silane (Moisture-Cure) method, resulting in about 65-70% cross-linking density.
Key Features:
Stiffer than PEX-A but still flexible enough for most residential uses.
More affordable and widely available.
Requires mechanical fittings (crimp or clamp) for connections.
Best For: Budget-conscious projects, standard plumbing installations, and radiant heating systems.
3. PEX-C: The Middle Ground
Manufacturing Process: Created using electron beam (E-beam) irradiation, achieving moderate cross-linking (70-75%).
Key Features:
Less flexible than PEX-A, prone to kinking if bent too sharply.
Often used in European markets but less common in North America.
Requires careful handling during installation.
Best For: Smaller-scale projects or specialized applications where PEX-A/B are unavailable.

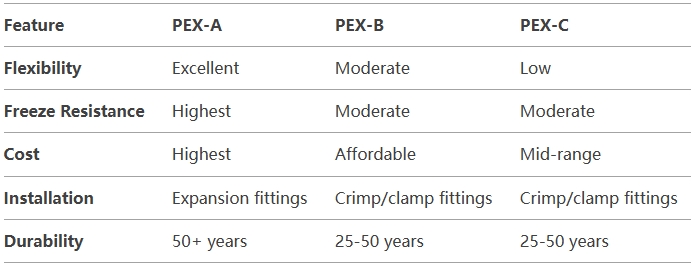

Critical Differences Between PEX Grades
How to Choose the Right PEX Grade
1. Consider Your Climate
For freezing temperatures, PEX-A’s elasticity makes it ideal.
In milder climates, PEX-B offers a practical balance of performance and cost.
2. Evaluate Installation Complexity
Tight spaces or retrofits benefit from PEX-A’s flexibility.
Straightforward layouts can use PEX-B with standard fittings.
3. Check Local Building Codes
Some regions mandate specific PEX types for plumbing or heating systems. Always verify compliance with ASTM F876/F877 standards and NSF/ANSI 61 certification for potable water safety.
4. Budget Constraints
While PEX-A has long-term durability, PEX-B reduces upfront costs without sacrificing reliability for most residential uses.
Common Myths About PEX Pipe Grades Debunked
Myth: “All PEX is the same.”
Fact: Manufacturing methods directly impact flexibility, longevity, and performance.
Myth: “PEX-B is inferior to PEX-A.”
Fact: PEX-B meets rigorous standards for residential use and is often more than adequate for typical plumbing needs.
Myth: “Color indicates grade (e.g., red/blue vs. white).”
Fact: Color usually denotes hot/cold lines, not grade. Always check markings like “PEX-A” or “PEX-B” printed on the pipe.
