Understanding PEX Pipe Sizes: Standards and Measurements

　　PEX piping has revolutionized plumbing systems due to its flexibility, durability, and ease of installation. A critical factor in ensuring optimal performance for your PEX system is selecting the correct PEX pipe sizes. This guide explores standard PEX pipe dimensions, applications, and expert tips to help you make informed decisions while boosting your project’s efficiency.

　　Understanding PEX Pipe Sizes: Standards and Measurements

　　PEX pipes are categorized by their outer diameter (OD) and inner diameter (ID), which determine water flow capacity and pressure compatibility. Here’s a breakdown of common PEX pipe sizes:

　　1/4-inch PEX

　　OD: 0.375 inches | ID: 0.25 inches

　　Use: Limited to low-flow applications like ice makers, humidifiers, or small water filtration systems.

　　3/8-inch PEX

　　OD: 0.5 inches | ID: 0.35 inches

　　Use: Ideal for short-run fixtures such as bathroom sinks, dishwashers, or refrigerator water lines.

　　1/2-inch PEX

　　OD: 0.625 inches | ID: 0.485 inches

　　Use: The most common size for residential plumbing, suitable for supplying water to showers, toilets, and kitchen faucets.

　　3/4-inch PEX

　　OD: 0.875 inches | ID: 0.68 inches

　　Use: Designed for high-demand fixtures like bathtubs, washing machines, and main water supply lines.

　　1-inch PEX

　　OD: 1.125 inches | ID: 0.86 inches

　　Use: Best for large-scale applications, including whole-house water distribution, commercial systems, or irrigation.

　　How to Choose the Right PEX Pipe Size

　　Selecting the correct size ensures efficient water flow and avoids pressure drops. Consider these factors:

　　Fixture Demand

　　Match pipe size to the fixture’s water requirements. For example, a showerhead typically needs a 1/2-inch line, while a tub may require 3/4-inch.

　　Pipe Length

　　Longer runs may require larger diameters to maintain pressure. A 3/4-inch pipe can deliver higher flow rates over extended distances compared to 1/2-inch.

　　Local Building Codes

　　Always check regional plumbing codes, as some areas mandate minimum PEX sizes for specific applications.

　　Water Pressure

　　Smaller pipes (e.g., 3/8-inch) can restrict flow if your system operates at low pressure. Opt for larger sizes in gravity-fed or low-pressure setups.

　　PEX Pipe Size Charts and Compatibility

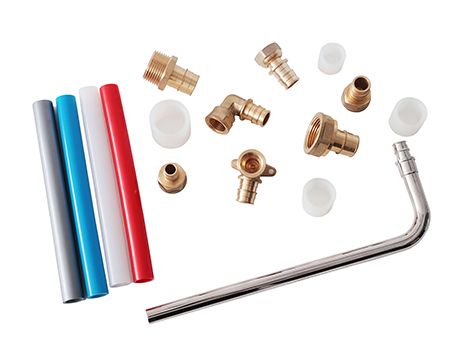

　　Use a PEX pipe size chart to cross-reference dimensions with fittings and connectors. For example:

　　Crimp Rings: Ensure rings match the pipe’s OD.

　　Manifolds: Multi-port manifolds often require 3/4-inch main lines with 1/2-inch branches.

　　Common Mistakes to Avoid

　　Oversizing or Undersizing

　　Oversized pipes waste materials and increase costs, while undersized pipes reduce efficiency.

　　Ignoring Thermal Expansion

　　PEX expands slightly with temperature changes. Allow slack in long runs to prevent stress on fittings.
