PE-Xa Pipe with EVOH Layer

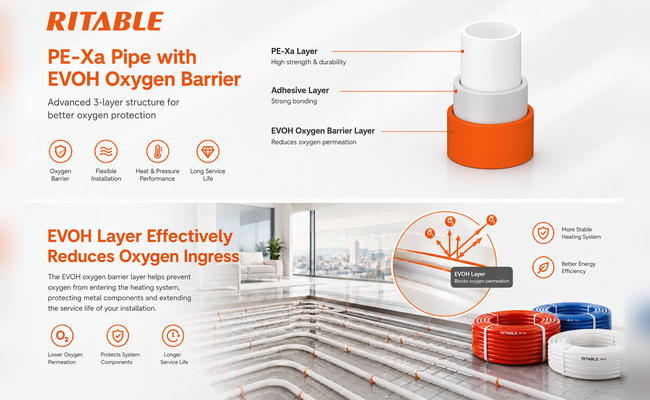

PE-Xa (cross-linked polyethylene) pipes with an EVOH (ethylene vinyl alcohol copolymer) barrier layer are a type of piping commonly used in plumbing and heating systems. The cross-linking of polyethylene enhances its strength and resistance to heat and pressure, making it suitable for various applications, including hot and cold water distribution, underfloor heating systems, and radiant heating.
Advantages
1. Broad temperature scope, long usage life up to 50 years.
2. Hardness and elasticity, higher inner pressure strength.
3. Higher chemical corrosion resistance and environmental stress cracking i.e. more kinds of chemical liquid can be conveyed.
4. In conformity with potable water hygienic standard, the pipe contains non-toxic components, not being rotten and breeding bacteria.
5.Having smoothness both inner and outer walls, the pipe have featured its smallest flow resistance and low noise.
6. Good bending property, easy to adjust while installation.
7. Light weight, convenient for installation and transportation.
Applications
1. Potable Water Distribution
2. Radiant Floor Heating Systems
3. Hydronic Heating Systems
4. Snow and Ice Melting Systems
5. Chilled Water Systems
6. Geothermal Heating and Cooling Systems
7. Solar Thermal Systems
8. Industrial Applications
Size
| OD(mm) | 16 | 20 | 25 | 32 | |||||||||
| Thickness(mm) | 1.8 | 2.0 | 2.2 | 1.9 | 2.0 | 2.3 | 2.8 | 2.3 | 2.8 | 3.5 | 2.9 | 3.6 | 4.4 |
| Tolerance(mm) | 0.3 | ||||||||||||
Certifications & Standards
PE-Xa EVOH Pipe is CE certified
Gost (Russian Certification)
Watermark(Australian Certification)
Manufactured to ASTM 876 standards
Manufactured to ISO 15875 standards
